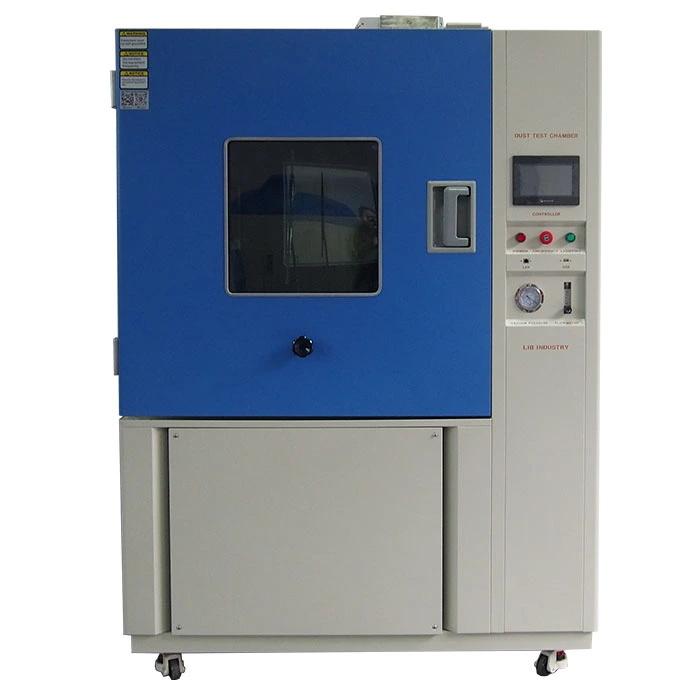

LIB IP6X test machine is used to test the IP6X dust protection level. IP (Ingress Protection) IP6X is the highest level of dust protection, indicating that the device is completely protected from dust.

The ip6x test equipement simulates the dust environment using a dust concentration of 50μm and 2kg-4kg/m³testing products (such as electronic equipment, electrical appliances, etc.).

Model: DI-800, DI-1000, DI-1500, DI-2000

Standard: IEC 60529, IP5X, IP6X,  ISO20653,  IEC 60068-2-68,  IEC 60598, MIL-STD-810G

Features and Benefits of IP6X Test Machine

1. Highly sealed test chamber with rubber seal between the workshop and the door, and magnetic lock to prevent misoperation to ensure that dust does not leak into the external environment during the test.

2. Highly accurate simulation of the dust environment, the dust filtered by metal square holes with a wire diameter of 50μm and a screen size of 75μm. The airflow speed in the test chamber should be controlled within 2m/s.

3. In line with IP6X protection grade test standards, such as IEC 60529, ISO 20653, etc., it can also adjust the temperature,and has a vacuum function, which can be a more comprehensive evaluation of the comprehensive protection performance of the product.

4. Advanced automatic control system, which can realize the automatic control of the test process, including dust blowing, pumping, temperature regulation and other operations.

Specifications of IP6X Test Machine
