Cubic optical particle counter (OPC), with channels for 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5μm, and 10μm particles, can realize continuous monitoring. The optical particle counter sensor also enables efficient data transmission through multiple communication methods (RS485 and Analog signals for example)  for streamlined connectivity and integration into various monitoring systems.

Overview for Cubic cleanroom particle counter

28.3LPM Portable Optical particulate detector OPC-6511DS

0.3, 0.5, 1.0, 5.0&10μm output

ISO 21501-4 compliance

Rechargeable battery.

Sound and light alarm.

Calibration coefficient correction is available.

28.3LPM Portable Optical Particle Counter

OPC-6511DS

Learn More

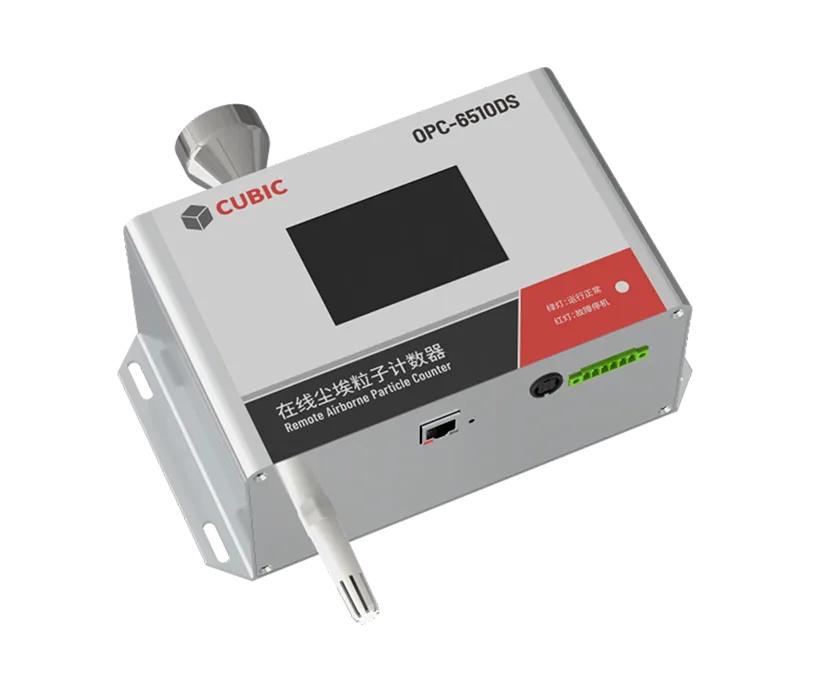

28.3LPM Online Particle Counter with Display OPC-6510DS

ISO 21501-4 compliance

Touch screen, calibration coefficient correction available

Output in pcs/28.3LPM or pcs/m³

Sound and light alarm

ModBus RTU, MQTT communication

28.3LPM Online Particle Counter with Display

OPC-6510DS

Learn More

28.3LPM Online Particle Counter without Display OPC-6510

0.3~10μm particles monitoring

Temperature and humidity monitoring

Built-in high-power linear laser

Built-in flow rate control system

Modbus RTU, MQTT protocol

28.3LPM Online Particle Counter

without Display

OPC-6510

Learn More

2.83LPM Online Particle Counter with Display OPC-6303DS

Industrial grade laser with high reliability.

Constant flow sampling system to ensure stable sampling.

0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm and 10μm output.

Modbus RTU & MQTT communication protocols.

Calibration coefficient correction is available.

Real-time display ISO 14644-1 grade level.

2.83LPM Online Particle Counter with Display

OPC-6303DS

Learn More

2.83LPM Online Particle Counter without Display OPC-6303M

6 channels output: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm

Industrial grade linear laser

Modbus, MQTT, 4-20mA for communication

Built-in flow control system

2.83LPM Online Particle Counter

without Display

OPC-6303M

Learn More

Explosion-proof Particle Counter OPC-6303FB

6 channels output: 0.3μm,0.5μm,1.0μm,2.5μm, 5.0μm, 10μm

High power industrial grade linear laser for accurate identification

Vehicle-grade constant current sampling structure fan for constant stable sampling flow

Wide working temperature -30°C-70°C

Suitable for areas with potentially explosive working environments

Explosion-proof Particle Counter

OPC-6303FB

Learn More

Optical Aerosol Spectrometer OPC-6510A

12 channels from 0.3 to 10μm

Measure particle distribution and concentration

Suitable for climate diagnostic

Built in flow control system

ModBus RTU and MQTT communications

Optical Aerosol Spectrometer

OPC-6510A

Optical Particle Counter(OPC) in Semiconductor Manufacturing Process Monitoring

In semiconductor manufacturing, minimizing yield losses requires rigorous contamination control in cleanrooms. Particulate matter, a major source of micro-contamination, must be continuously monitored. Cubic's optical particle counters, using Light Scattering technology, help fabs maintain low airborne particle levels effectively.

Optical Particle Counter(OPC) in Li- Battery Fabrication Contamination Monitoring

In lithium-ion battery manufacturing, controlling airborne particulate contamination is crucial for battery performance and reliability. Regulatory standards like ISO 14644 classify air cleanliness, often requiring ISO Class 5 or higher for EV battery production. Cubic's OPC-6303 and OPC-6510 Series Particle Counters, using light scattering technology, help monitor and control contamination. These advanced OPC optical particle counters ensure exceptional reliability in detecting airborne particles, making them indispensable for maintaining cleanroom standards in critical manufacturing environments

Optical Particle Counter(OPC) in Pharmaceutical Manufacturing Environmental Monitoring

In pharmaceutical manufacturing, controlling airborne particles is essential for product purity and safety. Cubic's OPC-6303 and OPC-6510 Particle Counters monitor cleanroom conditions, meeting regulatory standards. By utilizing an optical particle sensor, these counters effectively track particle concentrations and sizes, enabling manufacturers to minimize contamination risks and maintain product quality

Optical Particle Counter(OPC) in Flat Panel Display Manufacturing Process Monitoring

In pharmaceutical manufacturing, controlling airborne particles is essential for product purity and safety. Cubic's 2.83LPM 6303 OPC sensor and 28.3LPM 6510 continuous particle counter monitor cleanroom conditions, meeting regulatory standards. By tracking particle concentrations and sizes, manufacturers can minimize contamination risks and maintain product quality.

Benefits of Cubic Optical Particle Counter

Intelligent Monitoring

Modbus RTU and MQTT data communication enable factories to centralize the remote monitoring and real-time air cleanliness adjustment through the FFU control online, which helps accelerate the informatization of smart factories

Quality Control

OPC can be integrated into a filtration system to maintain the particle counts in the cleanroom environment within a certain low range to further help reduce particle matter pollution during manufacturing process.

Energy Efficiency

To ensure the air cleanliness compliant with the required level, the FFU fan does not  need to operate at high speeds continuously, instead it ramps up when necessary, therefore reducing the FFU workload and achieving energy consumption.

Cost Reduction

Compared with manual inspection with a handheld particle counter, online monitoring offers significant savings in labor costs while simultaneously minimizing the potential for contamination caused by human activity.

For more information about particle size analysis and building controls and solutions, please feel free to contact us!

We can also provide kinds of clean room air monitoring equipment for sale, if you are interested, please contact us.
