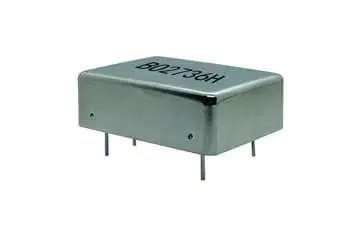

DIP (36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO
https://www.xtaltq.com/product....s/dip-36mm27mm-fast-


The Critical Role and Specifications of DIP OCXO in Modern Technology

In today’s fast-paced technological landscape, the DIP OCXO (Oven Controlled Crystal Oscillator) stands out for its exceptional performance and reliability. This article delves into the diverse applications and key specifications of the DIP Low Power OCXO, particularly the 36mm x 27mm variant, known for its fast warming-up, high stability, and low phase noise.

Applications of DIP OCXO
LTE and BTS

In the telecommunications sector, LTE (Long-Term Evolution) and BTS (Base Transceiver Stations) require precise timing and frequency stability to ensure seamless communication. The DIP OCXO provides the necessary high stability and low phase noise, making it an ideal choice for these applications. Its fast warming-up feature ensures that systems reach optimal performance quickly, minimizing downtime.

CATV and LAN

Cable Television (CATV) and Local Area Networks (LAN) depend on stable and reliable signal transmission. The DIP OCXO offers exceptional frequency stability, ensuring that these networks maintain high-quality data transmission and signal integrity. Its robust design makes it suitable for the demanding environments of CATV and LAN systems.

GPS Tracking

Accurate timing is crucial for GPS tracking systems to provide precise location data. The DIP OCXO’s high stability and low phase noise ensure that GPS devices deliver reliable and accurate positioning information. This makes it indispensable for applications in navigation, fleet management, and personal tracking devices.

Test and Measurement Equipment

Instruments used for testing and measurement, such as oscilloscopes and spectrum analyzers, require precise timing to deliver accurate results. The DIP OCXO provides the stability needed for these high-precision instruments, ensuring that measurements are reliable and consistent.

Key Specifications of DIP OCXO
Fast Warming-Up

One of the standout features of the DIP OCXO is its fast warming-up capability. This ensures that the oscillator reaches its optimal operating temperature quickly, reducing the time it takes for systems to become fully operational. This feature is particularly beneficial in applications where time is of the essence.

High Stability

The DIP OCXO offers exceptional frequency stability, which is crucial for maintaining consistent performance in various applications. Its high stability ensures that systems operate reliably, even in fluctuating environmental conditions. This makes it a preferred choice for critical applications in telecommunications, GPS tracking, and test equipment.

Low Phase Noise

Low phase noise is another critical specification of the DIP OCXO. This feature ensures that the oscillator produces a clean and stable signal, which is essential for high-speed data transmission and sensitive electronic systems. Low phase noise minimizes signal interference, enhancing the overall performance of the system.

Conclusion
The DIP OCXO, particularly the 36mm x 27mm variant, is a versatile and reliable component that plays a crucial role in various high-tech applications. From ensuring stable communication in LTE and BTS systems to providing precise timing in GPS tracking and test equipment, its fast warming-up, high stability, and low phase noise make it indispensable. By integrating the DIP OCXO into your systems, you ensure enhanced performance, reliability, and precision, meeting the demanding requirements of modern technology.

Application of DIP (36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO

LTE, BTS, CATV, LAN,GPS Tracking, Test & Measurement Equipment

XtalTQ is a leading global manufacturer of high-performance time-frequency control products and services. We were founded in 2009, located in Tianfu Software Park, Chengdu High-tech Zone, is engaged in the design and development of time-frequency products, these oscillators ensure optimal performance in industry, aerospace, communications, LoT, all kinds of equipment and more.

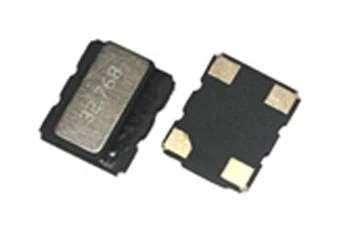

3.2×2.5mm for Real Time Clock, Portable Instruments, Timing Synchronization TCXO high precision oscillator
https://www.xtaltq.com/product....s/32x25mm-for-real-t


The Versatile Applications and Specifications of 3.2×2.5mm TCXO

In the ever-evolving world of technology, the 3.2×2.5mm TCXO clock (Temperature Compensated Crystal Oscillator) stands out for its versatility and precision. This compact component is essential in various high-tech applications, from LTE and BTS to GPS tracking and test equipment. Let’s explore the diverse applications and key specifications of this indispensable oscillator.

Applications of 3.2×2.5mm TCXO
LTE and BTS

In the realm of telecommunications, LTE (Long-Term Evolution) and BTS (Base Transceiver Stations) rely heavily on precise timing and frequency stability. The 3.2×2.5mm low phase noise TCXO ensures that these systems operate efficiently, providing stable and reliable communication channels. Its compact size makes it ideal for integration into modern, space-constrained telecom equipment.

CATV and LAN

Cable Television (CATV) and Local Area Networks (LAN) require high-frequency stability to maintain signal integrity and data transmission quality. The 3.2×2.5mm TCXO offers the necessary precision, ensuring that these systems deliver clear and uninterrupted service. Its reliability makes it a preferred choice for network infrastructure.

GPS Tracking

GPS tracking systems depend on accurate timing to provide precise location data. The 3.2×2.5mm TCXO offers exceptional frequency stability across varying temperatures, ensuring that GPS devices deliver reliable and accurate positioning information. This makes it indispensable for applications in navigation, fleet management, and personal tracking devices.

Test and Measurement Equipment

Instruments used for testing and measurement, such as oscilloscopes and spectrum analyzers, require precise timing to deliver accurate results. The 3.2×2.5mm TCXO provides the stability needed for these high-precision instruments, ensuring that measurements are reliable and consistent.

Key Specifications of 3.2×2.5mm TCXO
Real-Time Clock

The 3.2×2.5mm TCXO is ideal for real-time clock applications, offering precise timing that is crucial for time-sensitive operations. Its advanced temperature compensation ensures minimal frequency drift, maintaining accurate timekeeping even in fluctuating environmental conditions.

Portable Instruments

For portable instruments, size and power consumption are critical factors. The compact 3.2×2.5mm TCXO fits seamlessly into small devices, providing the necessary precision without compromising on battery life. Its low power consumption extends the operational life of portable instruments, making it a practical choice for handheld and battery-operated devices.

Timing Synchronization

In systems requiring precise timing synchronization, such as telecommunications and data centers, the 3.2×2.5mm TCXO offers exceptional frequency stability. This ensures that all components within the system operate in perfect harmony, reducing the risk of timing errors and enhancing overall performance.

Conclusion
The 3.2×2.5mm TCXO is a versatile and reliable component that plays a crucial role in various high-tech applications. From ensuring stable communication in LTE and BTS systems to providing precise timing in GPS tracking and test equipment, its exceptional frequency stability and compact size make it indispensable. By integrating the 3.2×2.5mm TCXO into your systems, you ensure enhanced performance, reliability, and precision, meeting the demanding requirements of modern technology.

As one of crystal oscillator manufacturers, we will do our best to meet all the needs of customers.

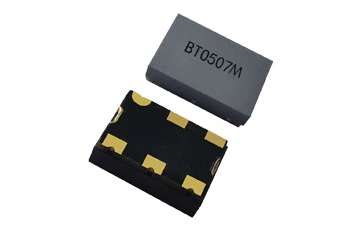

Differential TCXO Types
https://www.xtaltq.com/product....s/differential-tcxo.


How Differential TCXO Enhances GPS Accuracy

In the realm of GPS technology, precision is paramount. One critical component that significantly enhances GPS accuracy is the differential VCXO (Temperature Compensated Crystal Oscillator). This article explores how Differential TCXOs provide exceptional frequency stability across varying temperatures, ensuring more accurate and dependable GPS data.

The Role of Differential TCXO in GPS Systems
Exceptional Frequency Stability

GPS systems rely on precise timing to calculate positions accurately. Traditional TCXO crystal oscillators can drift with temperature changes, leading to errors in timing and, consequently, positioning. Differential TCXOs mitigate this issue by compensating for temperature fluctuations, ensuring consistent and reliable frequency output. This stability is crucial for maintaining the integrity of the GPS signal, resulting in more accurate and dependable location data.

Enhanced GPS Accuracy

By integrating Differential TCXOs, GPS systems achieve higher precision. This makes them ideal for applications requiring exact positioning, such as navigation and surveying. The advanced temperature compensation offered by Differential TCXOs ensures minimal frequency drift across a wide temperature range, maintaining consistent performance in varying environmental conditions.

Key Features of Differential TCXO
Advanced Temperature Compensation

Differential TCXOs offer advanced temperature compensation, ensuring minimal frequency drift across a wide temperature range. This feature is crucial for maintaining consistent performance in varying environmental conditions, making them ideal for GPS systems that operate in diverse climates.

High Frequency Stability

These oscillators provide exceptional frequency stability, reducing phase noise and jitter. This stability is essential for applications requiring precise timing, such as telecommunications and GPS systems. The high frequency stability of Differential TCXOs ensures that GPS signals remain accurate and reliable.

Differential Output

The differential output of these oscillators enhances signal integrity by reducing electromagnetic interference and crosstalk. This results in cleaner, more reliable signals, which are vital for high-speed data transmission and sensitive electronic systems. The differential output design ensures low jitter, low phase noise, and excellent signal integrity.

Low Power Consumption

Differential TCXOs are designed to operate efficiently with low power consumption, making them suitable for battery-powered and portable devices. This feature extends the operational life of such devices without compromising performance. The low power consumption of Differential TCXOs makes them ideal for GPS systems used in portable and battery-operated applications.

Applications of Differential Crystal Oscillators
Data Centers and Servers

Differential crystal oscillators provide stable clock signals for processors, memory, and high-speed interconnects in data centers and servers. Their exceptional frequency stability and low jitter make them essential for maintaining reliable synchronization in high-speed computing environments.

Telecommunication Networks

In telecommunication networks, Differential TCXOs support 5G base stations, optical transmission, and networking equipment that demand ultra-low jitter oscillators. Their high frequency stability ensures that telecommunication systems operate efficiently and reliably.

High-Speed Computing Systems

Differential TCXOs enable reliable synchronization in AI servers, cloud platforms, and supercomputers. Their advanced temperature compensation and differential output design ensure that high-speed computing systems maintain precise timing and signal integrity.

Test and Measurement Equipment

In test and measurement equipment, Differential TCXOs deliver accurate timing for oscilloscopes, spectrum analyzers, and precision instruments. Their exceptional frequency stability and low phase noise make them ideal for applications requiring precise measurements.

Industrial and Automotive Electronics

Differential TCXOs ensure frequency stability in industrial automation, automotive radar, and advanced driver-assistance systems (ADAS). Their advanced temperature compensation and low power consumption make them suitable for use in harsh industrial environments and automotive applications.

Conclusion
Differential TCXOs play a crucial role in enhancing GPS accuracy by providing exceptional frequency stability across varying temperatures. Their advanced temperature compensation, high frequency stability, differential output, and low power consumption make them ideal for a wide range of applications, from telecommunication networks to industrial automation. By integrating Differential TCXOs, GPS systems achieve higher precision, making them indispensable for applications requiring exact positioning. Investing in high-quality Differential TCXOs ensures that your GPS systems operate at their best, providing the accuracy and dependability needed in today’s fast-paced technological landscape.

As a crystal oscillator supplier, we can provide kinds of vcxo oscillator for sale, anything you need, please leave us a message.

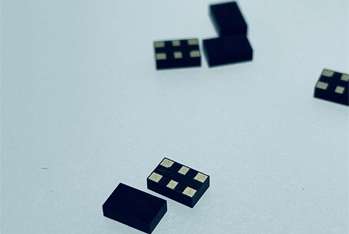

Crystal Resonator
https://www.xtaltq.com/products/crystal-resonator/


The Essential Role of High-Quality Crystal Resonators in Modern Electronics

Crystals and resonators play a pivotal role in a wide array of modern electronic applications, from telecommunications to medical equipment. Their ability to provide high stability and reliability makes them indispensable in various high-stakes environments, including space and defense. This article explores the diverse applications of quartz crystal resonators and oscillators and highlights their importance in ensuring the optimal performance of electronic systems.

Applications of Crystal Resonators in Modern Electronics
Communication Systems
Ensuring Accurate Signal Transmission and Reception

In the realm of radio frequency (RF) communication devices, crystal resonators are crucial. They are integral components in mobile phones, radios, and satellite systems, where they ensure accurate signal transmission and reception. The high stability of crystal resonators guarantees that communication devices operate efficiently, providing clear and reliable connections.

Computing Devices
Maintaining Clock Frequencies for Synchronization

Quartz crystal resonators are vital in computing devices, including computers and servers. They help maintain clock frequencies for processors and memory modules, ensuring synchronized operations and data integrity. Without crystal resonators, the precise timing required for efficient computing would be compromised, leading to potential data errors and system inefficiencies.

Consumer Electronics
Enhancing Performance and User Experience

In consumer electronics, such as televisions, gaming consoles, and digital cameras, crystal resonators play a key role in stable timing and frequency control. This stability enhances the performance of these devices, providing a seamless user experience. Whether it’s ensuring smooth video playback or precise image capture, crystal resonators are essential for optimal functionality.

Automotive Electronics
Ensuring Reliable and Precise Operation

Modern vehicles rely heavily on electronic systems, and crystal resonators are integral to their operation. They are used in GPS navigation systems, engine control units (ECUs), and infotainment systems. The precision and reliability of crystal resonators ensure that these automotive systems function accurately, contributing to the overall safety and efficiency of the vehicle.

Medical Equipment
Critical for Accurate Measurements and Patient Safety

In the medical field, the precision of crystal quarz resonators is paramount. They are used in devices such as ultrasound machines, pacemakers, and diagnostic equipment. The accurate timing and frequency control provided by crystal resonators are critical for obtaining precise measurements and ensuring patient safety. Any deviation in timing could lead to incorrect diagnoses or treatment, highlighting the importance of these components in medical technology.

Industrial Automation
Providing Precision for Efficient Operations

In industrial settings, crystal resonators are employed in control systems, robotics, and instrumentation. They provide the necessary precision for efficient and reliable operations. Whether it’s in manufacturing processes or automated systems, the stability of crystal resonators ensures that industrial equipment operates smoothly and accurately, minimizing downtime and maximizing productivity.

The Importance of High-Quality Crystal Resonators
High Stability and Reliability

High-quality crystal resonators offer exceptional stability and reliability, which are crucial for applications in high-stakes environments such as space and defense. These resonators can withstand extreme conditions and continue to perform accurately, ensuring the reliability of critical systems.

Versatility Across Applications

The versatility of crystal resonators makes them suitable for a wide range of applications. From consumer electronics to industrial automation, their ability to provide precise timing and frequency control is invaluable. This versatility ensures that crystal resonators remain a fundamental component in the advancement of modern technology.

Enhancing System Performance

By providing stable and accurate timing, high-quality crystal resonators enhance the overall performance of electronic systems. They reduce the risk of errors and improve the efficiency of operations, making them indispensable in both everyday devices and specialized equipment.

Conclusion
Crystal resonators are essential components in modern electronics, providing the stability and precision required for a wide range of applications. From ensuring accurate signal transmission in communication systems to maintaining synchronized operations in computing devices, their role cannot be overstated. High-quality crystal resonators enhance the performance and reliability of electronic systems, making them a critical element in the advancement of technology. Whether in consumer electronics, automotive systems, medical equipment, or industrial automation, the importance of crystal resonators remains paramount. Investing in high-quality crystal resonators ensures that your electronic systems operate at their best, providing the accuracy and dependability needed in today’s fast-paced technological landscape.

As one of oscillator manufacturers, we can provide kinds of crystal oscillator for sale, anything you need, please contact us.

100MHz TCXO
https://www.xtaltq.com/products/100mhz-tcxo.html


Why a 100MHz TCXO is Essential for High-Frequency Applications

When it comes to high-frequency applications, the choice of components can make or break the performance of your system. One such critical component is the TCXO 100mhz (Temperature Compensated Crystal Oscillator). This article delves into why a vcxo 100mhz is indispensable for applications requiring exceptional frequency stability and precision.

The Importance of Frequency Stability and Precision
Unmatched Frequency Stability

A 100mhz crystal TCXO offers unparalleled frequency stability, making it ideal for high-frequency applications. Unlike standard oscillators, a TCXO compensates for temperature variations, ensuring that the frequency remains stable across a wide range of operating conditions. This stability is crucial for applications such as telecommunications and RF systems, where even minor frequency deviations can lead to significant performance issues.

Exceptional Precision

Precision is another hallmark of the 100MHz TCXO. In high-frequency applications, precise timing is essential for synchronization and data integrity. A 100MHz TCXO provides the accuracy needed to maintain consistent performance, reducing the risk of timing errors and enhancing the overall reliability of your system.

Key Applications of 100MHz TCXOs
Telecommunications Systems

In telecommunications, a stable and precise clock signal is vital for frequency synthesis and modulation. A 100MHz TCXO ensures that radio transmitters, receivers, and satellite communications systems operate seamlessly, providing a stable clock signal that enhances the quality and reliability of communication.

RF and Microwave Circuits

RF systems rely on 100mhz crystal oscillators to generate carrier signals and local oscillators for mixing and frequency conversion. The stability and precision of a 100MHz TCXO are crucial for maintaining signal integrity, ensuring that RF and microwave circuits perform optimally.

Test and Measurement Equipment

Instruments such as spectrum analyzers, frequency counters, and signal generators depend on accurate oscillators for precise measurements. A 100MHz TCXO provides a stable frequency reference, ensuring that these instruments deliver reliable and accurate results.

Digital Systems and Microcontrollers

High-speed processors, FPGAs, and digital circuits require precise clock sources to synchronize operations and manage data flow. A 100MHz TCXO serves as an excellent clock source, providing the necessary precision and stability to keep digital systems running smoothly.

Clock and Timing Applications

In telecom networks, data centers, and synchronization systems, maintaining perfect timing is essential. A 100MHz TCXO serves as a master clock, ensuring that all devices in the network stay perfectly timed, thereby enhancing the overall efficiency and reliability of the system.

Medical and Scientific Devices

Medical and scientific devices such as MRI machines, ultrasound systems, and laboratory instruments rely on precise frequencies for signal processing and accurate imaging. A 100MHz TCXO provides the necessary precision, ensuring that these devices deliver accurate and reliable results.

Benefits of Investing in a 100MHz TCXO
Enhanced System Reliability

By investing in a 100MHz TCXO, you significantly enhance the reliability of your system. The exceptional frequency stability and precision of a TCXO reduce the risk of timing errors, ensuring consistent performance even in fluctuating temperature conditions.

Reduced Timing Errors

Timing errors can lead to significant performance issues in high-frequency applications. A 100MHz TCXO minimizes these errors, providing the precise timing needed to maintain data integrity and synchronization.

Consistent Performance

Consistency is key in high-frequency applications. A 100MHz TCXO ensures that your system performs reliably, regardless of temperature variations. This consistency is crucial for applications such as telecommunications, RF systems, and advanced digital circuits.

Conclusion
A 100MHz TCXO is an indispensable component for high-frequency applications requiring exceptional frequency stability and precision. Whether you are working in telecommunications, RF systems, digital circuits, or medical and scientific devices, a 100MHz TCXO offers the reliability and accuracy needed to enhance your system’s performance. By investing in a 100MHz TCXO, you ensure that your projects meet the demanding requirements of high-frequency applications, providing the accuracy and dependability your systems need.

As one of electronic crystal manufacturers, we can provide kinds of related products for sale, anything you need, please contact us.
