EXPLORE THE BEST CENTRIFUGE MACHINE INDUSTRIAL APPLICATIONS
https://www.saideli-centrifuge.....com/applications-of

Application of Centrifuge Machine
Centrifuge in industry has a wide application in the pharmaceutical, chemical, sludge, chemical fiber, mining, and food industries. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium-size grains solid. For example chemical industry products such as gypsum, ammonium sulfide, bluestone, potassium chloride, borax, dyestuff, resin, pesticide, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection etc.

PHARMACEUTICAL
During the production of API, wall penetration installation centrifuge can meet GMP and FDA requirements.

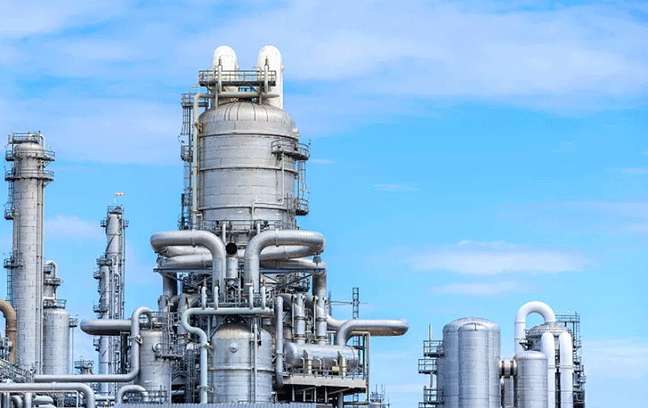

CHEMICAL
In the chemical production area, centrifuge with good seal and explosion-proof performance is popular. As it will protect both operators and the environment.

FOOD
Sweetener and sugar are very common food additives in our daily life. Centrifuge in industry can be used to extract the powder from the suspension.

FARM CHEMICAL
Most of the farm chemicals are toxic which will be hazards to the health of operators and the environment, centrifuge in industry with a good seal and explosion-proof performance will be the best choice in the production.

NEW ENERGY
With more and more applications of lithium batteries, the recycling of waste batteries has become a major issue. Centrifuge can be used in this industry to collect nickel, cobalt, manganese, copper, lithium from the waste battery and reuse them.

CENTRIFUGE BY SAIDELI
As a modern enterprise with a high starting point in the field of machinery manufacturing, SAIDELI has always been adhering to the enterprise spirit of "diligence, innovation, and transcendence", establishing a clear quality concept and focusing on its own advantages. The centrifuges manufactured by Saideli have been widely used in several industries such as chemical, foodstuff, chemical fiber, mining and metal melting, pharmacy, bioengineering, and light industry. With various choices of material, the centrifuge can be suitable for the separation of kinds of suspension. Safety is the main concern during the operation of the centrifuge, Saideli pays special attention to the design and application, from strength calculation to material choice, especially ex-proof issue, we choose a different proposal for different medium and allocations.

Saideli becomes the leader industrial centrifuge machine supplier of separating machines with Excelsior Spirit. The research centre now has 5 doctor tutors, 8 professional engineers, 11 senior engineers, 42 engineers and 68 assist engineers; a leading specialized research bureau, a separating and drying technology lab and 88 sets of various research devices are equipped. Now it has tens of invention patents and utility patents. Carrying out a spirit of “performing, innovating and exceeding”, Saideli, as one of modernized centrifuge machine manufacturers in the machinery industry, establishes explicit quality belief and focuses on core superiority. It has various kinds of general(special) machinery device 480 sets and multiple most developed working devices in the world. Toshiba CNC boring and processing centre, German Schiess CNC turning processing Center CNC fine plasma cutting machine imported from Germany, Laser cutting machine, Saideli also built positive pressure Workshop in 2012 which can fit the requirements of GMP standard.

INDUSTRIAL CENTRIFUGE SEPARATOR WORKING PRINCIPLE
https://www.saideli-centrifuge.....com/principles-of-t

The centrifugal separator working principle is fed tangentially to the cylindrical top of the centrifugal separator to produce rotation. Through the slot in the air inlet chamber, the flow rate in industrial centrifuge is further accelerated. Centrifugal force moves the heavy particles to the side of the barrel. They move down and accumulate in the collection chamber at the bottom of the separator. The deflector at the top of the collection chamber changes the flow direction. No solid liquid moves upward in the vortex and exits through the top of the separator. The separated solids are removed from the collection chamber periodically or continuously.

What Is Centrifugation And Where It Is Used?
The centrifugal separator is driven by centrifugal technology. Centrifugation uses centrifugal force to separate particles from solution. This process is mainly used to separate two immiscible substances in the solution. Centrifuge is mainly used to separate solid particles from liquid in suspension; or to separate two immiscible liquids with different densities in emulsion (such as separating cream from milk); it can also be used as solid liquid centrifugal separator, such as drying wet clothes with a washing machine; special ultra-fast tube separators can also separate gas mixtures of different densities, such as enrichment and separation of gaseous uranium hexafluoride; Due to the characteristics of different sedimentation speeds in the liquid, some sedimentation centrifuges can also classify solid particles according to density or particle size. The centrifuge separator is widely used in chemical, petroleum, food, pharmaceutical, mineral processing, coal, water treatment and shipbuilding sectors.

Centrifugal Separator Working Principle
Centrifuge separator machine has a high-speed rotating cylinder, called a bowl, around its axis, usually driven by an electric motor. After the suspension (or emulsion) is added to the drum, it is rapidly driven to rotate at the same speed as the drum, and the components are separated and discharged separately under the action of centrifugal force. In general, the higher the drum speed, the better the separation effect. Pharmaceutical centrifuge separator manufacturers usually offer two types of centrifuge separators for sale: centrifugal filtration and centrifugal sedimentation. Hence there are two industrial centrifuge working principles.

(1) Centrifugal filtration

The centrifugal pressure generated by the suspension under the centrifugal force field acts on the filter medium (filter screen or filter cloth), so that the liquid passes through the filter medium to become filtrate; while the solid particles are trapped on the surface of the filter medium to form a filter residue, thereby realizing liquid-solid separation. There are holes on the circumferential wall of the filter drum, and the inner wall is lined with filter media, which is centrifugal separator working principle.

(2) Centrifugal sedimentation

Liquid-solid (or liquid-liquid) separation is realized by utilizing the principle of rapid sedimentation and stratification of components with different densities of suspension (or emulsion) in a centrifugal force field. The peripheral wall of the sedimentation drum has no holes. After the suspension (or emulsion) is added to the drum, the solid particles (or liquid with higher density) settle to the drum wall to form a sediment (or heavy separation liquid). The liquid with lower density gathers in the direction of the center of the drum, flows to the overflow port for discharge, and becomes the separation liquid (or light separation liquid). The rotary drum filter is used for intermittent slag discharge, which is suitable for the separation of suspensions or emulsions with small particle size and low concentration of solid particles. In the drum with multi-layer conical discs, the liquid is divided into several thin layers by the discs, which shortens the distance of sedimentation separation, accelerates the separation, and improves the separation effect.

When the solid and liquid mixture to be separated enters the high-speed rotating drum from the feeding port, under the action of centrifugal force, the mixture is filtered through the filter screen, the liquid separation is discharged through the drain pipe, and the solid separation is left in the drum. Inside, when the solid separation in the drum reaches the requirements specified by the equipment, stop feeding, clean the solid separation, and discharge the washing liquid at the same time. After the cleaning meets the requirements, the centrifuge separator runs at a low speed, and the solid separator discharge device (scraper) is driven by the AC servo motor to discharge the solid separator to complete a working process.

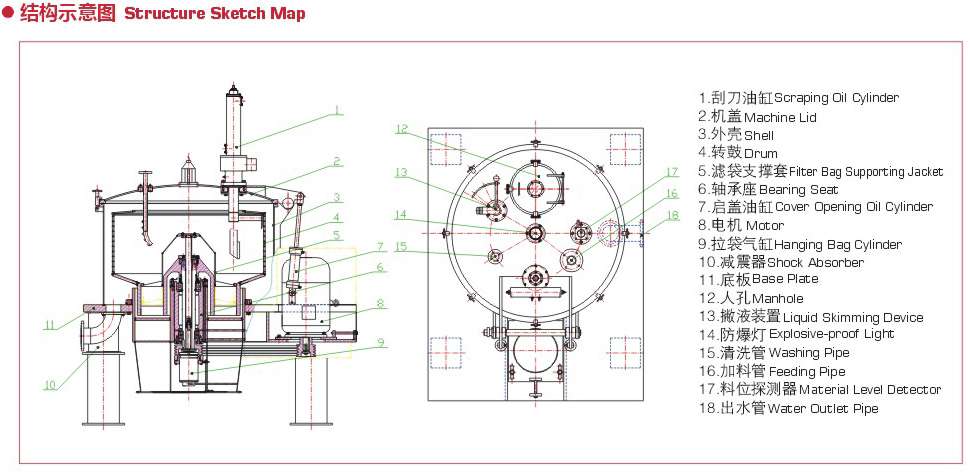

Centrifugal Separators Working Principle Image

Industrial Centrifuge Working Principle Video
The centrifugal separation machine working principle is fed tangentially to the cylindrical top of the centrifugal separator to produce rotation. Through the slot in the air inlet chamber, the flow rate in industrial centrifuge is further accelerated. Centrifugal force moves the heavy particles to the side of the barrel. They move down and accumulate in the collection chamber at the bottom of the separator. The deflector at the top of the collection chamber changes the flow direction. No solid liquid moves upward in the vortex and exits through the top of the separator. The separated solids are removed from the collection chamber periodically or continuously.

As an industrial centrifugal separation equipment manufacturer, Saideli continuously develops high-tech and top-quality products which include industrial centrifuge machine, industrial centrifugal dryer, and industrial centrifugal filter. The industrial centrifuge for sale can be used in various industries such as wastewater treatment, food processing, and chemical manufacturing for separating solids and liquids or for clarifying liquids. Choose us as your centrifuge machine manufacturer and experience the benefits of reliable and durable equipment for your industrial needs. Contact us today for more information.

OPERATION AND CONTROL MANAGEMENT OF HORIZONTAL DECANTER CENTRIFUGE IN WASTEWATER TREATMENT PLANT
https://www.saideli-centrifuge.....com/operation-and-c

Non-adjustable mechanical factors of horizontal decanter centrifuge

Drum diameter and effective length

The larger the volume of sedimentation treated by effective conveying, the stronger the precipitation handling capacity will be. Also, the longer the retention time of material molecules in the drum chamber of the industrial centrifuge, the greater the separation resistance coefficient, and the better the efficiency of centrifugation under the same speed. However, due to the influence of the size of material shape, the maximum turning radius of the centrifuge drum plate in a horizontal centrifuge will not increase without limit, because the maximum allowable speed has been reduced due to the increase in diameter and the decrease in centrifugal force.

Drum

The drum can be divided into deep liquid pools and shallow liquid pools according to its shape. The deep liquid pool is used to process sludge and pasty materials. The principle is that the high torque generated by the screw compresses the settled material to dehydrate the sludge. The shallow liquid pool is used to process rough and internally gapped particles of sediment, so that water can pass through the particle gaps and discharge to the solid phase for dehumidification.

Design of screw

The pitch of the screw refers to the relative horizontal distance between two rotating screw blades of the machine and two adjacent spiral blade diameters of adjacent machines. It is often an important process structure parameter in the entire equipment, and it determines the speed of screw conveying. The easier the settling substance is to be conveyed, the larger the pitch can be. The pitch will directly affect the outcome of the sludge conveying work.

When the diameter of both rotating wing screws of the machine reaches a certain height, the larger the pitch value, the larger the helix angle value, and the greater the conveying opportunity of the sludge is blocked between adjacent spiral blade diameters. At the same time, increasing the pitch will reduce the number of rotations of the screw blade diameter, making it difficult for the sludge to reach a uniform state of distribution between the cone end blades of the screw drum. This will cause the internal vibration and pressure of the entire screw machine to increase.

In order to facilitate the effective transportation and separation of sludge, the pitch angle should not be too large. The best range for industrial centrifuges is about 6 degrees or less to reduce the sludge's transport backflow or separation speed.

Material of equipment

Parts that come into contact with materials and their volatile vapors must be made of materials that are resistant to chemical and physical corrosion. In special projects, high-nickel-based alloy materials may be used if required on site. Attention should be paid to factors such as the chemical concentration of the material and the operating temperature during operation.

Adjustable mechanical factors of horizontal decanter centrifuge

Drum speed

The adjustment method of the drum speed, which determines the high or low speed of the drum, is currently usually achieved by multi-motor three-phase AC variable frequency motors, direct adjustment, or by driving the rotation direction of the hydraulic motor. The higher the speed requirement, the stronger the centrifugal force, which is beneficial to quickly increase the soluble solid content on the surface of the cement cake.

However, the usually high requirements for drum speed can often cause moisture damage and sludge cohesion, reducing the final dewatering and purification of sludge. At the same time, the relatively high-speed requirements for the entire material conveying device use three-phase motors, which cause large wear areas in the entire three-phase machine system, large changes in power parameters, large power consumption losses, and large vibration noise losses. All these factors increase the wear and tear on the system.

Differential speed ratio

The speed difference directly affects the strength of sludge discharge, the cake degree of mud, and the quality of screened liquid, and is one of the key technical parameters that must be adjusted according to the working conditions of the horizontal screw industrial centrifuge machine. Although increasing the differential speed can increase the sludge discharge capacity, it will also reduce the dehydration time of sediment, resulting in high moisture content of the dehydrated mud cake.

There is a certain contradiction between improving the capacity of sludge treatment and improving the effect of sludge treatment. In order to effectively improve the treatment capacity of sludge, it is necessary to further increase the difference between mud and speed, and appropriately reduce the dryness of mud. Therefore, on-site simulation adjustment work should be carried out to find the best differential speed range according to the material properties, processing capacity, processing requirements, and the structural parameters of the centrifuge in industry, in order to achieve the highest processing capacity under conditions that meet the mud dryness.

SAIDELI: Your Centrifuge Partner
As one of China’s leading industrial centrifuge manufacturers, SAIDELI offers a full range of high - quality horizontal centrifuge machines designed to meet diverse application needs. With advanced technology, reliable performance, and professional support, SAIDELI is your trusted partner in achieving efficient and eco - friendly separation solutions. Contact us today to learn more or request a quote.

If you want to know more about wastewater centrifuge operation, please visit our website.

COMMON ISSUES WITH HORIZONTAL CENTRIFUGE MACHINES IN WASTEWATER TREATMENT PLANTS
https://www.saideli-centrifuge.....com/issues-with-hor

Horizontal Centrifuge Machine (Horizontal Spiral Discharge Sedimentation Centrifuge) is mainly composed of a drum, a screw, a differential system, a drive system, and a control system. In the process of sludge dewatering in sewage treatment plants, Horizontal Centrifuge Machine is widely used. Despite the differences in model specifications, equipment structure, materials, and operating parameters among various manufacturers, their working principles are basically similar, using centrifugal force to accelerate solid sedimentation for solid-liquid separation.

The Clogging Issue of Horizontal Centrifuge Machine

In actual operation, horizontal centrifuge machine often faces clogging issues, manifested as poor solid discharge or complete blockage. These phenomena include increased current, dull operation sound of equipment, and uneven solid phase discharge. When completely clogged, the equipment may alarm and shut down, requiring timely handling.

Causes and Solutions

Unreasonable equipment structure. If the taper angle is too large, the pitch is too large, etc., due to equipment reasons, if the structure is unreasonable, the user themselves cannot solve it;

Operating parameters not matching the site conditions; such as differential control, drum speed, etc. The solution is to stop feeding, wait for the equipment to run for a few minutes, then adjust the drum speed (generally slowing down the drum speed), increase the differential speed, and feed a small amount of material for separation. Once the equipment operation is stable, increase the feed amount.

Poor Dehydration Effect of Horizontal Centrifuge Machine

Poor dehydration effect means a high moisture content in the solid phase, affecting forming and transport capacity. This may be caused by poor flocculant performance or improper setting of operating parameters.

Solutions

First, check if the flocculant performance is normal and if permeability is good. If the flocculation effect is poor, it is difficult to meet the working condition requirements for dehydration, and the dosage is large, resulting in high operating costs. Finding a suitable flocculant greatly helps improve dehydration effect and reduce operating costs.

Adjust operating parameters to improve dehydration effect by increasing drum speed or adjusting differential speed to improve dehydration efficiency, replacing the flow regulation plate, thereby achieving the desired dehydration effect.

Low Handling Capacity and High Operating Cost of Horizontal Centrifuge Machine

Due to different equipment structures from various industrial centrifuge machine manufacturers, the handling capacity of the same model can vary significantly. The handling capacity and medication dosage directly affect the increase in operating costs. When purchasing a Horizontal Centrifuge Machine, it is crucial to choose a manufacturer with strong production capacity, good after-sales service, and high cost-performance ratio. Choosing a good partner is the most economical and low operation cost factor for users.

By solving these common issues, sewage treatment plants can improve Horizontal Centrifuge Machine efficiency and reliability, reduce operating costs, and ensure smooth environmental protection work.

Now price of centrifugation in wastewater treatment is reasonable. If you want to buy centrifuge in water treatment plant, please contact us.

As one of industrial centrifuge suppliers, we will do our best to meet all the needs of customers.

SAIDELI CENTRIFUGE IN CHEMICAL INDUSTRY
https://www.saideli-centrifuge.....com/centrifuge-in-c

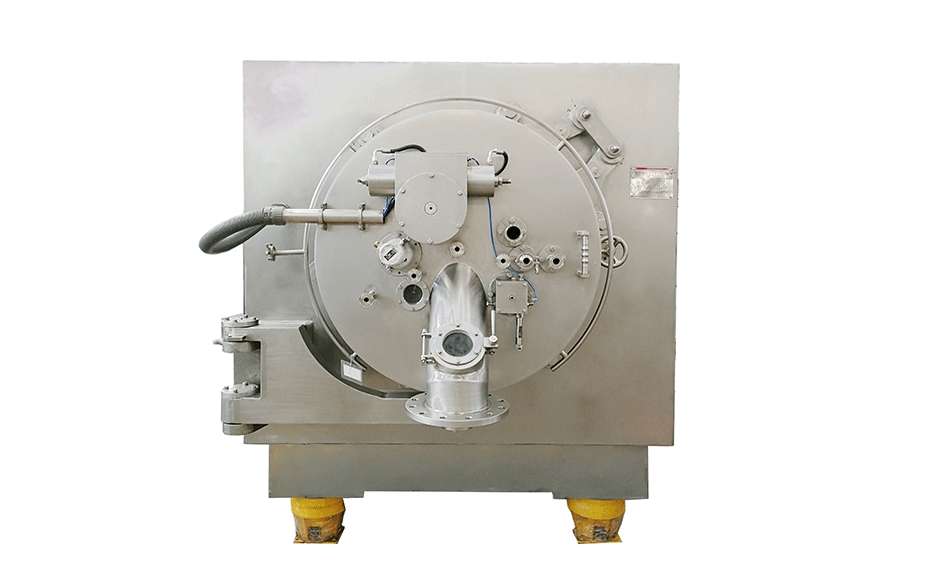

Chemical centrifuge with excellent sealing and explosion-proof performance are usually used in the production of dangerous chemicals. In the production process of inflammable and explosive and toxic chemicals, in order to prevent harm to operators and the environment, the sealing performance and explosion-proof performance of chemical centrifuges are particularly important.

SAIDELI
WHAT IS A CENTRIFUGE USED FOR IN CHEMISTRY
An industrial centrifuge is a critical piece of equipment in the chemical industry. It is used to separate components of a mixture based on their size, density, and other physical properties. This separation process is accomplished by spinning a mixture at high speeds, causing the heavier components to move to the outside of the centrifuge while the lighter components remain closer to the center.

In the chemical industry, centrifuges are used in a variety of applications, including:

Separation of solids from liquids
Centrifuges can be used to separate solids from liquids in various chemical processes, such as in the production of pharmaceuticals, food, and beverages.

Purification of chemicals
Centrifuges can be used to purify chemicals by removing impurities and contaminants, such as in the production of solvents and reagents.

Extraction of valuable products
Centrifuges can be used to extract valuable products from mixtures, such as in the production of biofuels or essential oils.

Recycling and waste management
Centrifuges can be used to separate waste materials and recover valuable components, such as in the treatment of wastewater or in the recycling of plastics.

Overall, the use of centrifuges in the centrifuge chemical industry is critical to ensuring the quality and purity of chemical products, as well as to improving process efficiency and reducing waste.

SAIDELI Centrifuge in Chemical Industry
SAIDELI
BENEFITS OF CHEMICAL CENTRIFUGE MACHINE
A chemical centrifuge machine is a piece of equipment used in various laboratory and industrial settings to separate materials of different densities. Here are some of the benefits of using a chemical centrifuge machine:

Speed and Efficiency
An industrial centrifuge can quickly separate materials of different densities, saving time and increasing efficiency. This is particularly useful in large-scale industrial processes where time is of the essence.

Precision
Chemical centrifuge machines are highly precise, allowing for accurate separation of materials. This is important in laboratory settings where accuracy is crucial.

Flexibility
Chemical centrifuge machines are versatile and can be used to separate a wide variety of materials, including liquids and solids.

Scalability
Chemical centrifuge machines can be scaled up or down depending on the needs of the process. This makes them suitable for both small laboratory settings and large industrial processes.

Low Maintenance
Chemical centrifuge machines are generally low maintenance, requiring minimal upkeep and repair.

Cost-Effective
Despite their many benefits, chemical centrifuge machines are generally affordable and cost-effective to use. This makes them a popular choice in many laboratory and industrial settings.

Overall, a chemical centrifugal separation machine is a highly beneficial piece of equipment that can save time, increase efficiency, and improve accuracy in laboratory and industrial processes.

SAIDELI Centrifuge in Chemical Industry
SAIDELI
ADVANTAGES OF CHEMICAL CENTRIFUGE MACHINE
Inflammable and explosive is significant characteristic of the chemical industry. In the process of chemical production, there are many inflammable and explosive powders and solvents, so the sealing and explosion-proof performance of the centrifuge must be considered. As one of the leading centrifuge machine manufacturers, we offer high-performance chemical centrifuge machines that can be safely used in a variety of hazardous environments without the risk of explosion or leakage.

36
LATEST COMPANY
660
ANNUAL SALES FIGURE
186+
CONSULTATION SERVICE

CASE STUDY OF CENTRIFUGATION IN CHEMISTRY

Centrifuge Separation Used in Medical Industry
Hydeli Pharmaceuticals purchased r-a large centrifuge equipment and put it into production.

Centrifuge Separation Used in Medical Industry
Hydeli Pharmaceuticals purchased r-a large centrifuge equipment and put it into production.
